2004 Series
THRU-HOLE

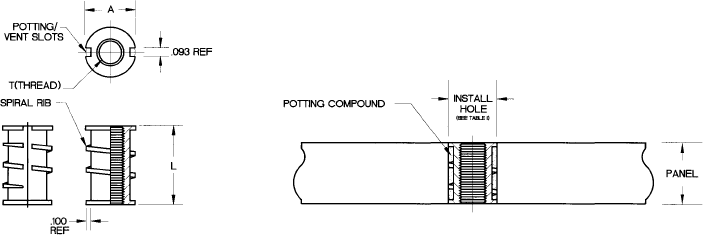

MOLDED-IN OR POTTED-IN INSERT, FLUSH MOUNTED BOTH SIDES

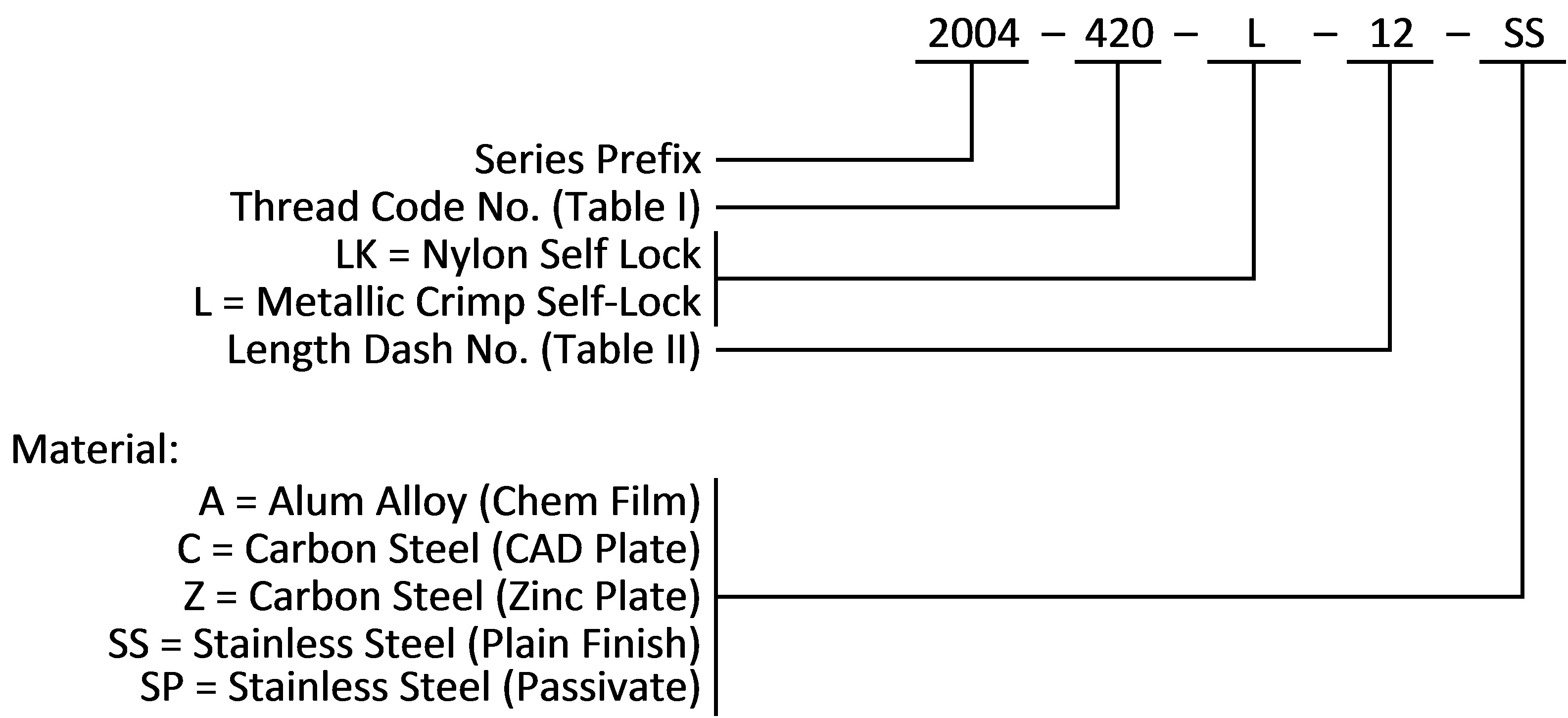

Data Sheet
 |
TABLE I
CODE
NO. |
T
THREAD |
A
DIA
± .010 |
B
SELF-LOCK
± .06 |
INSTALL
HOLE
+.010 / -.000 |
| 632 |
6-32 UNJC |
.490 |
.12 |
.500 |
| 832 |
8-32 UNJC |
.490 |
.12 |
.500 |
| 1032 |
10-32 UNJF |
.520 |
.12 |
.530 |
| |
| 420 |
1/4-20 UNJC |
.583 |
.16 |
.593 |
| 428 |
1/4-28 UNJF |
.583 |
.16 |
.593 |
| |
| 518 |
5/16-18 UNJC |
.646 |
.20 |
.656 |
| 524 |
5/16-24 UNJF |
.646 |
.20 |
.656 |
| |
| 616 |
3/8-16 UNJC |
.708 |
.20 |
.718 |
| 624 |
3/8-24 UNJF |
.708 |
.20 |
.718 |
| |
| 714 |
7/16-14 UNJC |
.771 |
.20 |
.781 |
| 720 |
7/16-20 UNJF |
.771 |
.20 |
.781 |
| |
| 813 |
1/2-13 UNJC |
.833 |
.20 |
.843 |
| 820 |
1/2-20 UNJF |
.833 |
.20 |
.843 |
|
 |
TABLE II
| DASH NO. |
L ± .03
LENGTH |
| -5 |
.312 |
| -6 |
.375 |
| -7 |
.437 |
| -8 |
.500 |
| -10 |
.625 |
| -12 |
.750 |
| -14 |
.875 |
| -16 |
1.000 |
| -18 |
1.125 |
| -20 |
1.250 |
| -22 |
1.375 |
| -24 |
1.500 |
|
